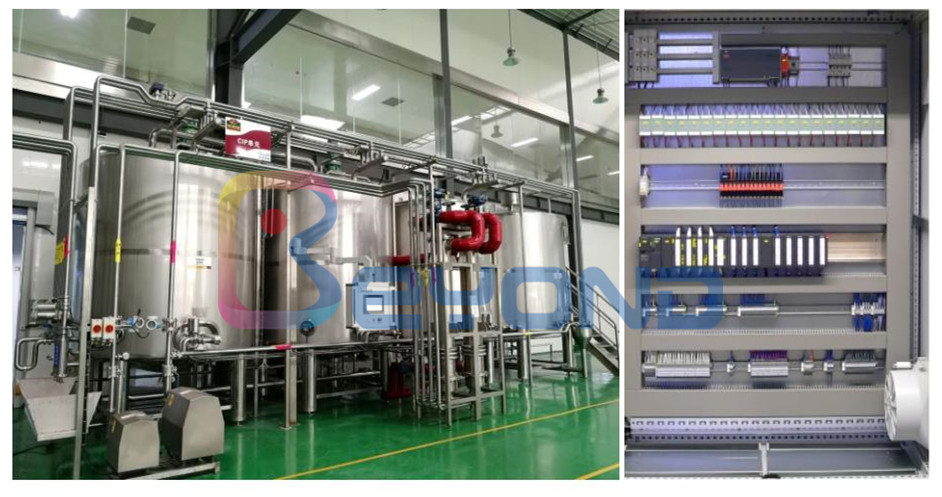

分體式全自動CIP系統Split type full-auto CIP cleaning system
全自動CIP清洗時指設備（罐體、管道、泵、閥門等）及整個生產線在無需人工拆開的前提下，在閉合的回路中進行循環清洗。
The operating principle of the full auto CIP cleaning system means that the tank body，pipelines，pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments，all cleanings are done in the closed circuit.
系統控制參數：
本系統采用PLC編程控制，帶彩色觸摸屏操作顯示整個生產工藝流程及各項控制參數，清洗液溫度可設定，對罐內酸堿度可設定，對清洗時間可設定，清洗順序可設定，清洗回流酸堿度可設定，配備系統故障報警裝置。
Technical parameter:

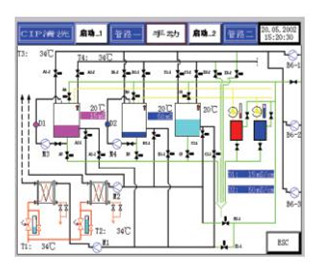

This system adopts the PLC program to control，with the colored touch--screen to operate and display the whole process flow and also the each controlling parameter.The temperature of the cleaning liquid can be set.
It can set the PH value，the cleaning time，cleaning sequence，and also the refluence PH value.With the system malfunction alarm device.
系統工作原理：
1.清洗液流量自動控制
2.清洗液溫度自動控制
3.罐內液位自動補償控制
4.罐內酸、堿液的濃度自動補償
5.酸液、堿液、熱水的換相自控操作
6.系統報警裝置
The operating principle of the system：
1.Auto-flow control for the cleaning solution
2.Automaticaly reglulate thetemperature of the cleaning liquid.
3.Auto-compensate for the inside tank liquid level.
4.Automatically-compensation for the acid and alkali concentration.
5.Auto transfer from one cleaning liquid to another.
6.System auto alarm-device
系統的主要設備包括：

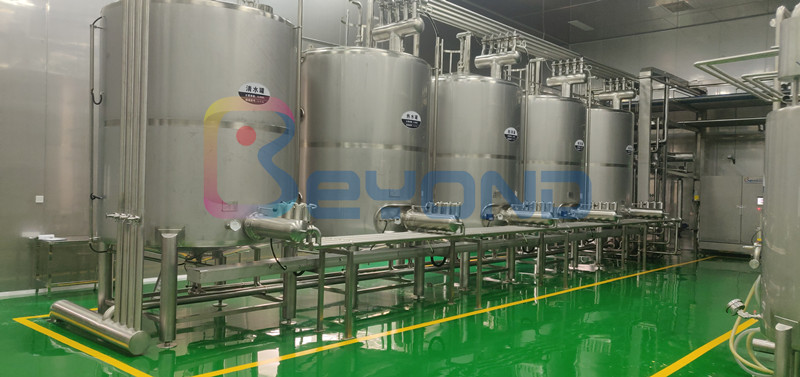

CIP清洗液貯罐（酸罐，堿罐，熱水罐，清水罐）；
CIP cleaning liquid storage tanks（include acid tank，alkali tank，hot water tank，clear water tank）；
兩個濃酸/堿單層貯罐；Two not big storage single layer tanks for concentrated acid and alkali；
CIP進程泵和CIP回程泵；CIP forward and retum pumps；
二個濃酸（堿）液隔膜泵；Two diaphragm pumps for acid/alkali concentrate；
換熱器（板式、管式）；Heat exchanger（plate or tubular type）；
一個電器控制箱；One electrical appliance box；
一組控制管閥件；One set of controlling pipe and valve component；
一套自動執行元器件及電器材料；One set of auto-performance componentsand parts and the electrical appliance material；
CIP清洗液儲罐：1000L-10000L；CIP cleaning liquid storage tank：1000L-10000L；
根據客戶需要，可以將系統制作成雙回路、三回路、四回路等，可以同時多個清洗回路同時進行。
According to the customer's requirements，we can make the double circuit，three circuit，four circuit and so on，meanwhile we can make multi circuit operating at the same time.
加熱方式可以為：板片式、盤管式、列管式。The Heating way:plate type，coil tube type，tubular type.
